Automatic Gantry Stacker Can Double Channel Palletizer

Automatic gantry stacker palletizer

Double channel palletizer machine

Beverage palletizer with warranty

Skontaktuj się z nami

Poproś o wycenę

Automatic Gantry Stacker Can Double Channel Palletizer

Szczegóły produktu

Nr modelu:

Dostosowane

Pojemność:

10-120 skrzynek / min Dostosowane

Moc:

21kW

Waga:

9200 KG

Wymiar:

14500*7000*3750mm

Pakiet Transportowy:

Opakowanie foliowe lub drewniana skrzynka

Specyfikacja:

9200 KG

Znak firmowy:

Peiyu

Pochodzenie:

Chiny

Podkreślić:

Automatic gantry stacker palletizer

Double channel palletizer machine

Beverage palletizer with warranty

Warunki płatności i wysyłki

Minimalne zamówienie

Cena

100000

Produkty pokrewne

Robotic Palletizing System That Marshals First and Then Palletizer for Beverage Lines

Najlepszą cenę

Robotic Palletizer Robotic Palletizing System Canned Palletizer for Pet Food Packaging Lines

Najlepszą cenę

Customized Double-Lane Case Palletizer with Paper Separators for Bottled Water Line

Najlepszą cenę

Gantry Palletizer Beverage Palletizer Customized for Beverage Line

Najlepszą cenę

Skontaktuj się z nami

+86 13030636622

marketing@pyspc.com

Skontaktuj się teraz

Opis produktu

Automatic Gantry Stacker Can Double Channel Palletizer

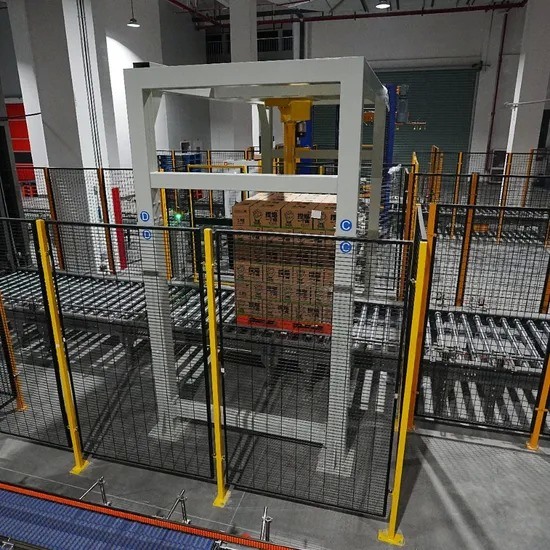

Double channel gantry palletizer can palletize the carton, plastic case, shrink film package or other packaging pieces on the pallet (wood, plastic), automatic stacking multi-layers, then automatically out and easy to forklift transported to the warehouse.

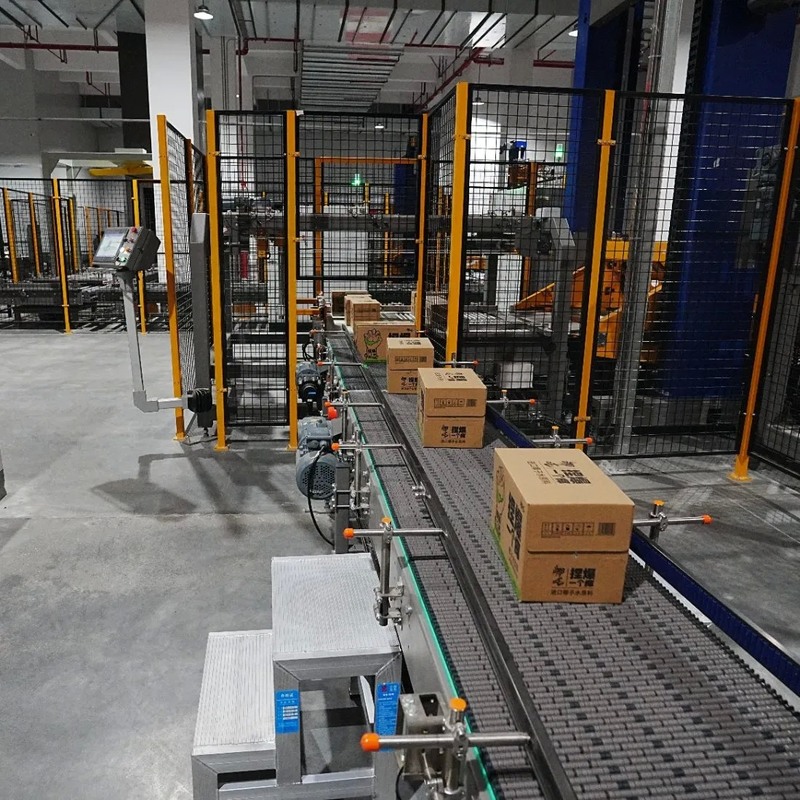

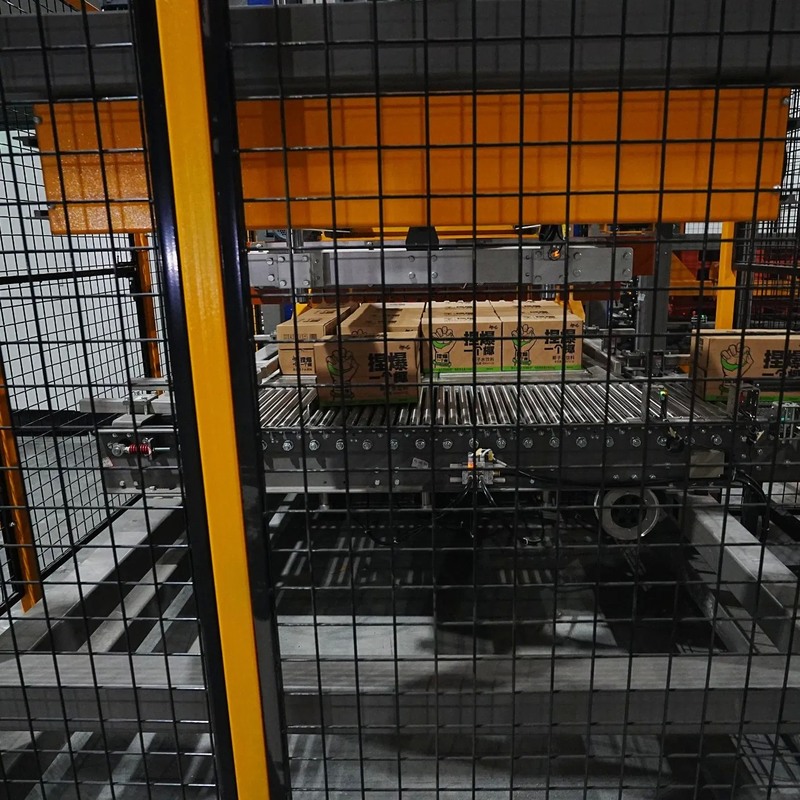

It divides the cases into two lines by separation mechanism and the cases enter the case arrangement platform from these two lines. After that the cases are pushed to the lifting platform from arrangement platform, and palletizing. This kind of palletizing is more efficient.

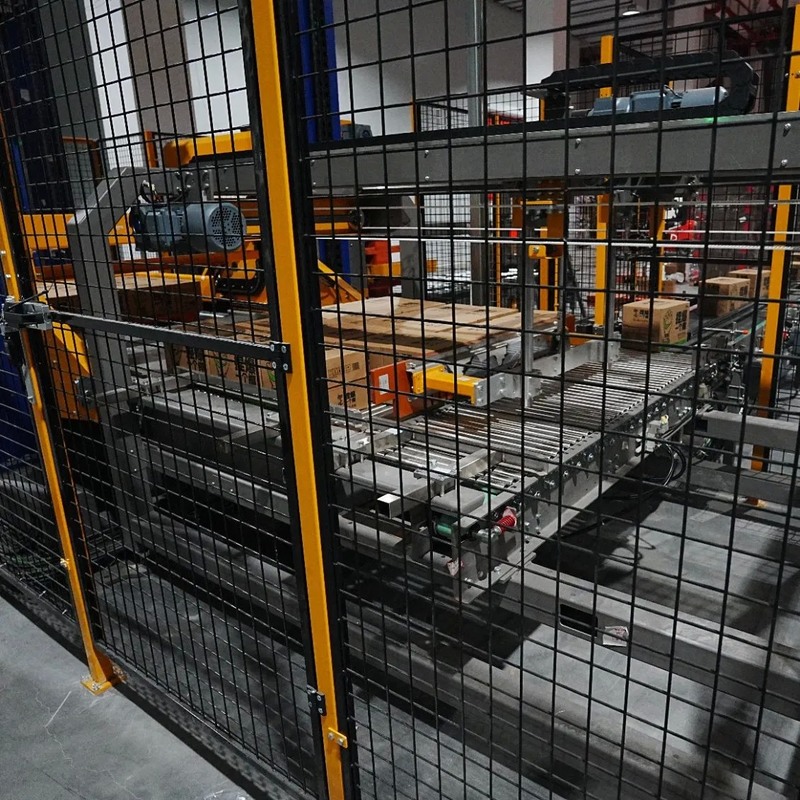

The device controlled by PLC and touch screen control pad to realize intelligent operation management, high degree of automation, simple, easy to master, and it can greatly reduce labor and reduce labor intensity. Focus on the concept of high speed, stable and save a space design. Pallet divider uses separate tray, high speed, save space. One machine multi-purpose, adjust quickly, palletizer can be used for stocking a variety of specifications products.

Classification	Double Channel Palletizer	Capacity	60 cartons/min
Operating Mode	Stacking layer by layer	Conveyor Height	750mm
Driven Type	Electric	Pallet Conveyor Height	550mm
Pallet Size	Standard Pallet (as demanded)	Case Size	As demanded
Dimension	1450070003750mm	Applicable Product	Carton, Plastic case, Shrink film packaging
Palletizing Storage	15 pallets	Total Power	21KW
Weight	9200kg	Transport Package	Film Packing or Wooden Case
